Digital Efflux (Standart TAR) Viscometer
|
UTB-1200 |
Digital Standard Tar / Efflux Viscometer, 220-230 V 50-60 Hz 1 ph. |
|
UTB-1202 |
Go/Not Go Gauge for 10 mm Orifice, for UTB-1208 |
|
UTB-1204 |
Go/Not Go Gauge for 4 mm Orifice, for UTB-1210 |
|
UTB-1206 |
Go/Not Go Gauge for 2 mm Orifice, for UTB-1212 |
|
UTB-1208 |
Cup 10 mm dia. for UTB-1200 |
|
UTB-1210 |
Cup 4 mm dia. for UTB-1200 |
|
UTB-1212 |
Cup 2 mm dia. for UTB-1200 |
|
UTGT-2010 |
Thermometer IP 8 C, 0 to 45°C |
|
UTB-1216 |
100 ml Cylinder with Graduation at 20, 25 and 75ml |
|
UTB-1218 |
Light Mineral Oil, 5L, EN 12846- ve 2, UTB-1200 |
EN 12846, 13357

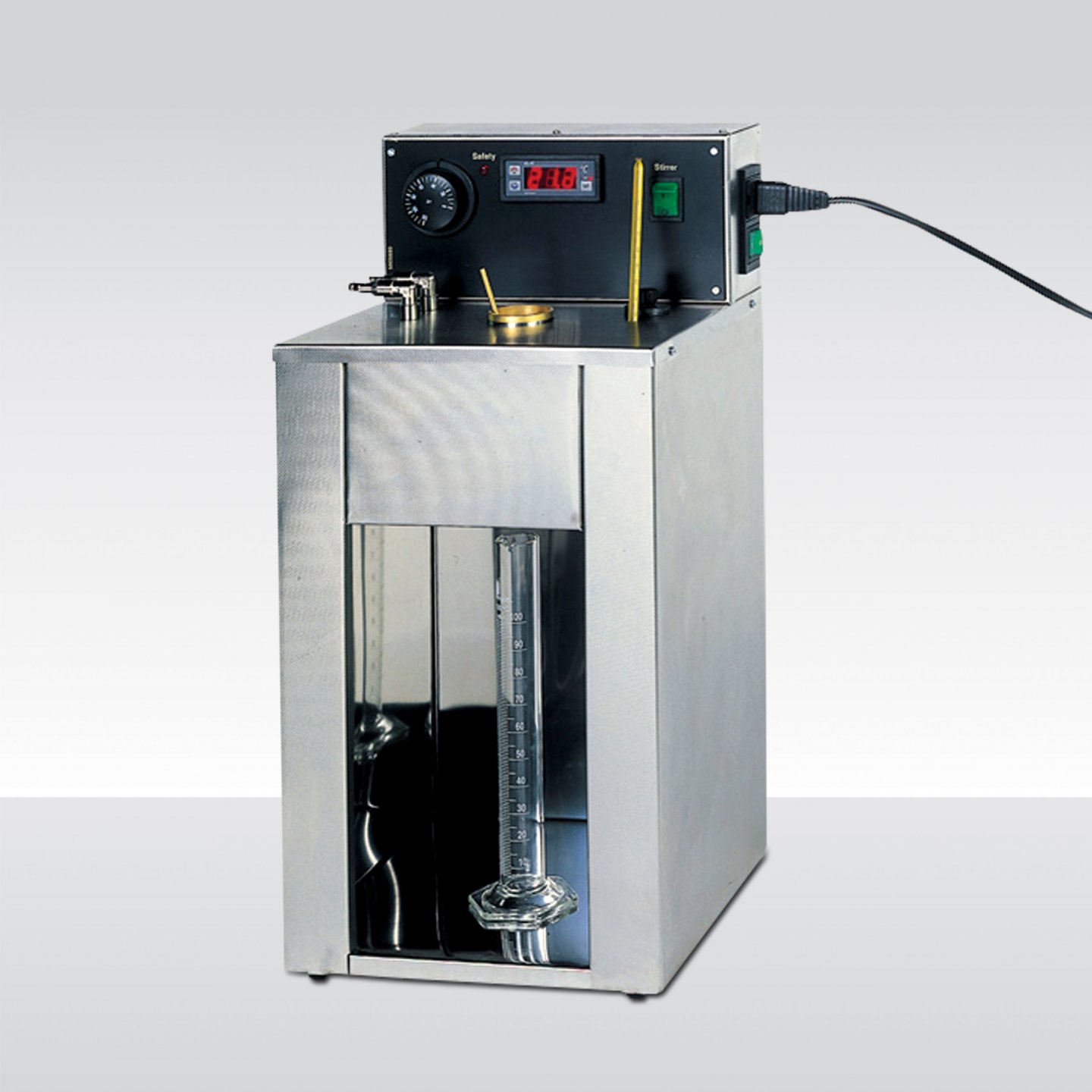

The UTB-1200 Digital Standart Tar / Efflux Viscometer is used for determining the viscosity of cutback, fluxed bituminous binders and bituminous emulsions.
The Viscometer consists of a tank fitted with a thermostat, a rheostat, an agitator, an immersion heater to heat the water to the required temperature and a cooling coil for connection to the water supply.
The temperature is checked with a thermometer capable of measuring in the 0-45°C range.
Cups, thermometer (UTGT-2010), Go/Not Go Gauges and light mineral oil should be ordered separately.
Required Cup Sizes According to Different Standards:
EN 12846 : 2, 4 and 10 mm dia.
EN 13357 : 4 and 10 mm dia.
|
Dimensions |
300x300x350 mm |
|---|---|
|
Weight (approx.) |
10 kg |
|
Power |
300 W |
