DSX2000 Digital Microscope
Precision Made Simple
The award-winning DSX2000 digital microscope series simplifies tasks, boosts productivity, and streamlines work for researchers and QC lab professionals. With innovative tools, all-in-one imaging, and a customizable interface, the DSX2000 system adapts to your needs. Paired with PRECiV™ software, the DSX2000 microscope empowers your team to achieve fast, precise results and capture exceptional images beyond 4K resolution. An intuitive, seamless experience enables users of all skill levels to operate the system easily and confidently.
All-in-One Solution
Simplify Operations with an All-in-One Solution
By providing reliable results easily, the DSX2000 digital microscope series frees up valuable time to focus on the work that matters most. Get inspection results with minimal training or quick, accurate answers to your research questions.
See the Whole Picture

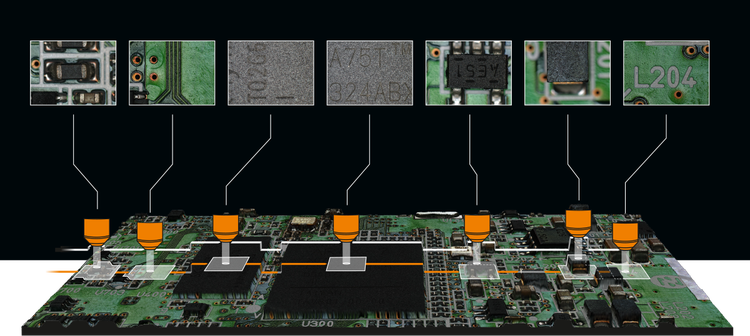

The DSX2000 microscope series offers a wide magnification range of 21X-7,300X, enabling you to complete macro and micro inspections with one system. With a lineup of 20 objective lenses, including super long working distance and high-resolution options, you can easily adapt your imaging to different samples and applications.
Simplify Operations with an All-in-One Solution
Using optical zoom, a wide magnification range of 26X–7,300X enables your team to complete macro and micro inspections with one system, freeing up time for the work that matters most. Work efficiently with a fully integrated imaging, measurement, analysis, and reporting system.

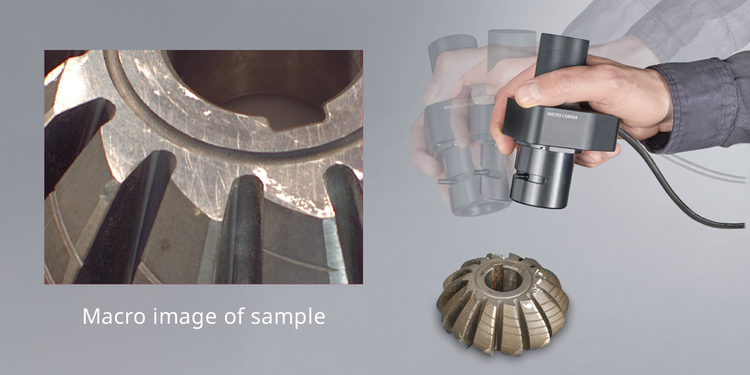

Fast, Flexible Macro Imaging
Quickly capture overview images of samples with the macro camera. This flexible accessory can be detached and held by hand to image large samples that cannot be placed on the stage. Switching to the macro camera view in the software is simple, making it easy to alternate between micro and macro imaging. Generate comprehensive reports faster with the required overview and magnified images.
Switch Objectives Quickly and Easily
Quickly and easily change objectives on any DSX2000 model. The easy-to-replace lenses and adjustable settings in an ergonomic system let you work faster and maintain comfort.
Switch Automatically
For systems with a motorized zoom head, you can control the automatic revolving nosepiece from the console or your computer to make effortless magnification changes.
Switch with a Slider
Systems with standard or universal zoom heads also offer seamless magnification changes via the sliding nosepiece, where two objective lenses can be attached simultaneously. Switch the magnification just by sliding the lens for fast macro-to-micro imaging. This system makes it easy to change lens types, providing flexibility for various inspection needs.

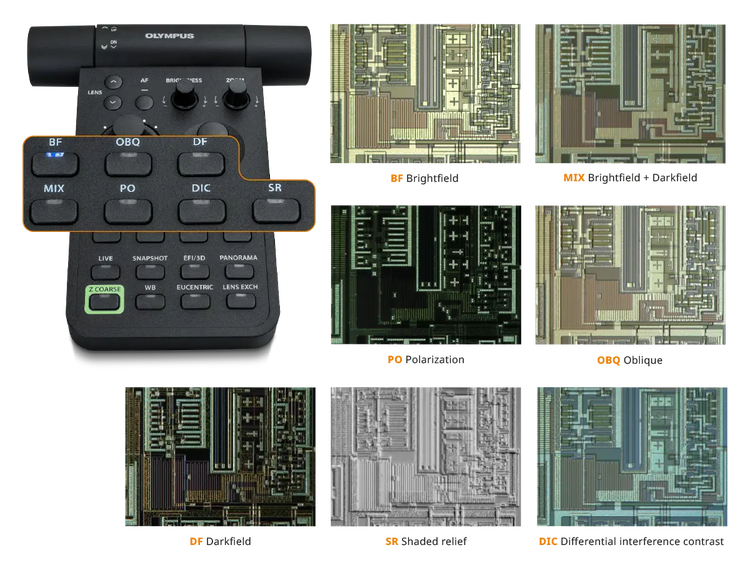

See What Matters with a Click
The DSX2000 microscope offers seven different observation methods at the click of a button. Find viewing conditions using brightfield (BF), oblique (OBQ), darkfield (DF), MIX (DF and BF), polarization (PO), differential interference contrast* (DIC), or our unique shaded relief (SR) method.
Reveal Defects in Real Time
Shaded relief observation reveals ultra-fine defects in real time, without post-processing delays. Move the stage and scan your sample seamlessly, viewing shaded relief images instantly for fast, thorough inspections.

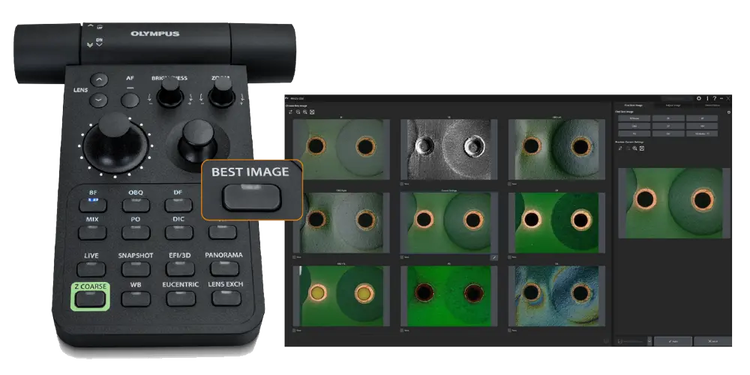

Find the Best Image, Fast
Best image function identifies the best imaging mode for revealing what needs to be seen with one click.
Lighting Tailored to Your Sample
Observe internal details in transparent, semitransparent, or thin samples with various transmitted lighting and contrast options. Select cartridges according to the type and purpose of the sample.
Left: plastic molded product captured using transmitted light with the SZX2-CPO polarization plate cartridge.
Right: fibers captured using transmitted light with the SZX2-CDF darkfield cartridge.
Adaptable Sample Positioning
The extended stage (up to 200 × 100 mm) accommodates multiple or large samples, while the tilting frame and rotating stage enable you to place your sample in the best observation conditions.
Smart Software
The Power to Work Smarter
Pair the DSX2000 microscope with PRECiV image analysis software to maximize efficiency. Customized workflows and AI capabilities on the DSX2000 digital microscope give you the power to work smarter, unlocking more efficient ways to perform routine inspections or conduct complex analyses.
Customize Workflows for Faster Operations
EZ mode simplifies the interface by only providing essential functions. Custom workflows limit available buttons for consistency and ease of use while reducing potential errors.
1. Define your workflow
2. Arrange the icons
3. Activate the workflow
Unlock Efficiency with AI
PRECiV software equips the DSX2000 microscope with our unique Live AI. This powerful tool instantly reveals hidden details and highlights key features on live images without additional processing. AI-assisted decision-making frees your experts from the need to double-check images.
1. Produce a live image
2. Train the neural network (5 minutes)
3. Apply the neural network to the live image
Automatic Image Improvement
Automatic image improvement eliminates unimportant scratches or elements that could obscure critical information or be mistakenly counted by the AI.
Steel microstructure
Live contrast enhancement with grain boundaries highlighted
Automatic Object Discrimination
With minimal training, image segmentation enables the AI to identify and count different object types in your sample.
Through holes in the printed circuit board.
Live detection of filled and empty holes.
Simplify Tasks with Unified Software
PRECiV software operates similarly on all industrial microscopes, creating a cohesive analysis environment across digital (DSX series) and conventional microscopes (BX™ and SZX™ series). Access tools for 2D/3D measurements, image enhancement, macro recording, AI-assisted analysis, and more.
Compliant Measurements in a Few Clicks
Simplify daily tasks for material analyses with standard-compliant automated workflows. Choose from options for grain sizing, cast iron analysis, phase analysis, non-metallic inclusion rating, and more.
Seamless Network Integration
Seamless Network Integration
Connect the DSX2000 microscope to your company network for IT compliance and quick image sharing.
Maximize Throughput
Analyze images on any PC equipped with PRECiV software. This frees up the DSX2000 microscope for image acquisition, increasing workflow efficiency.
Create Compliant Reports Easily
Use the plug-in for Microsoft 365 to design your own reports in Microsoft Word, Excel, or PowerPoint.
Precise Imaging
Assurance in Your Images and Measurements
Be confident in your results knowing that the DSX2000 digital microscope produces exceptional images and precise measurements that meet the exacting demands of quality control, failure analysis, and R&D.
Flexible Optics

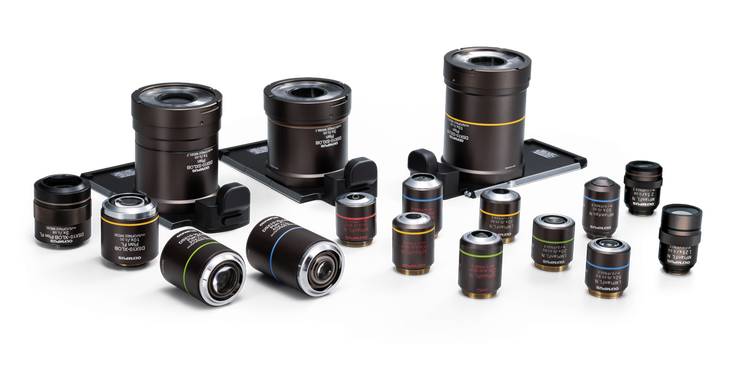

Building on a century of innovation, Evident has a rich legacy of expertise in precision optics. Our extensive line of dedicated objectives provides the wide magnification range (21X–7,300X) and working distance needed for inspections, whether you’re investigating the cause of a failure or doing a routine quality check.
High-Resolution Imaging Beyond 4K
The DSX2000 microscope empowers inspections with image quality surpassing standard 4K resolution*, delivering enhanced clarity and coverage across large, thin, thick, rough, reflective, or transparent sample types. Pair the system with a 32-inch 4K monitor, for example, to further enhance sample details for observation and analysis.
* Resolution beyond 4K is not available on the SZH model.
Continuous Autofocus
The objective lens automatically moves up and down to match the unevenness of the object, providing a live image that is always in focus even when the observation location changes. By eliminating the need to adjust focus manually, the DSX2000 microscope helps your lab improve analysis and inspection efficiency.
Advanced 3D Measurements
Get detailed insights into surface heights and features with precise 3D analysis for complex inspections.

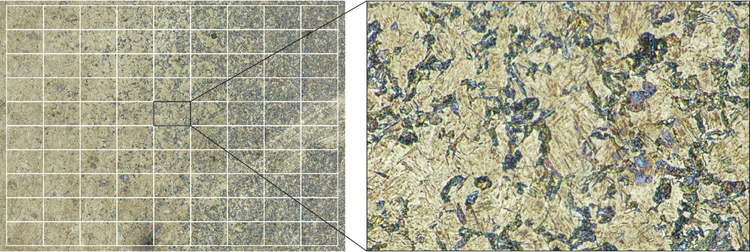

Unlimited Image Size
Seamless stitching quickly creates large macro images, enabling analysis of large samples in less time. Create macro photos as large as you want—the only limits are your hard drive space and stage travel range.
Save and Recall Observation Settings
Captured images automatically record their settings. Reuse conditions with one click for consistency and repeatability.
Guaranteed* Accuracy and Repeatability
Telecentric optics and traceable, time-stamped calibration by Evident technicians ensure precise measurements and easy alignment with metrology standards. Professional on-site calibration and service plans help keep your DSX2000 microscope compliant at predictable costs—especially with multi-year plans bundled at the best value when purchased with a new system.
*The guaranteed accuracy and repeatability apply only if the device is defect-free and calibrated according to the manufacturer's specifications. An Evident technician or an Evident-authorized specialist must perform calibration.
