AUTOMATIC Compression Testing Machines

EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks, Cylinders And Cubes

Product Code

UTC-4609EG.FPR

600 kN EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks, Cylinders And Cubes

UTC-4709EG.FPR

1100 kN EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks, Cylinders And Cubes

UTC-0210

High Precision Pressure Transducer and Electronic

UTC-4680

Pedestal for 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf) Compression Testing Frames



Models for 220-240V 50-60 Hz, 1ph

UTC-4609EG.FPR

UTC-4709EG.FPR

Models for 110-120V 60 Hz, 1ph

UTC-4609EG.FPR-N

UTC-4709EG.FPR-N



UTC-4709E.FPR and UTC-4719E.FPR Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units/ blocks, cylinders and cubes.. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of concentric centering line/s of lower bearing block the only required operations are;

  • Setting test parameters, including pace rate (only required when the specimen type is changed).
  • Pressing the START button on the control unit.
  • The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
  • Automatically saves the test parameters and test results.

UTC-4680 Pedestal  that is made of steel to facilitate  the user’s  placement of specimens in the frames for compression test should be ordered separately.

The Machines consist of a welded steel frame ( see table), hydraulic power pack with U-Touch PRO Control Unit.



Main Features

  • Pace Rate control between 1 kN to 25 kN
  • Load Accuracy Class 1 acc. to EN 12390-4  and acc. to E74 starting from with the 5% of the machine capacity  (Special calibration option starting from 1% of the full range with UTC-0210)
  • Tests automatically with closed loop control
  • The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
  • Load measurment with a pressure transducer
  • Hydraulic pump with dual stage for rapid approach
  • Welded steel walled frame with a single acting piston
  • Piston return at the end of test automatically



Safety Features

  • Maximum pressure valves to avoid machine overloading
  • Limit switch for piston stroke
  • Emergency stop button
  • Removable transparent front and rear safety doors
  • Software controlled maximum load value
  • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.



U-Touch PRO Control Unit  for Automatic Compression / Flexure Testing Machines

U-Touch PRO Control Unit UTC-4930.FPR is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

U-Touch PRO Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Digital graphic display is able to draw real-time "Load vs. Time", or "Stress vs. Time" graphics

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines”  for details of the properties.



UTEST Software for Automatic Compression / Flexure Testing Machines

UTEST software USOFT-4830.FPR provides to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc. can be seen in detail at the  pages of UTEST Software for Automatic Compression / Flexure Testing Machines.



Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

In this case, the machines provide load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selecting test channel And additional selector valve.



EN 772-1 and GENERAL
PURPOSE AUTOMATIC  COMPRESSION TESTING MACHINES

FOR MASONARY UNITS/BLOCKS, CYLINDERS AND CUBES

Models

UTC-4609EG.FPR

UTC-4709EG.FPR

Product Photo

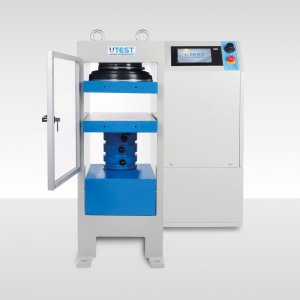

UTC 4709EG FPR 1100 kN

UTC 4709EG FPR 1100 kN

Capacity

600 kN

1100 kN

Frame Type

Welded Steel

Welded Steel

Lower Bearing Block, Dimensions (D)

310x510x50 mm

310x510x50 mm

Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)

310x510x50 mm

310x510x50 mm

Surface Hardness of Bearing Blocks

55 HRC

55 HRC

Flatness Tolerance

0,05 mm

0,05 mm

Piston Diameter

230 mm

250 mm

Piston Stroke

50 mm

50 mm

Maximum Vertical Clearance

Between Bearing Blocks (E)

330 mm

330 mm

Horizontal Clearance (B)

320 mm

320 mm

For Masonary Units/Blocks

Specimens Sizes (up to)

up to 300x500 mm

masonary units/blocks

up to 300x500 mm

masonary units/blocks

For Cylinder

Specimens Sizes (up to)

up to Ø160x320 mm

cylinders

up to Ø160x320 mm

cylinders

For Cubes

Specimens Sizes (up to)

200 mm

200 mm

Power

550 W

550 W

Oil Capacity

20 L

20 L

Maximum Working Pressure

150 Bar

280 Bar

Dimensions (wxlxh) (Axd*xF)

750x550x750 mm

750x550x750 mm

Weight

775 kg

775 kg

Pedestal (Optional)

UTC-4680

UTC-4680

(d*) depth

(**) Limited by capacity of the  frame



The machines are supplied complete with;

• 100 mm, 50 mm, 30mm height x Ø165 mm  distance pieces

• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629)

• Removable transparent front and rear safety doors

Download
