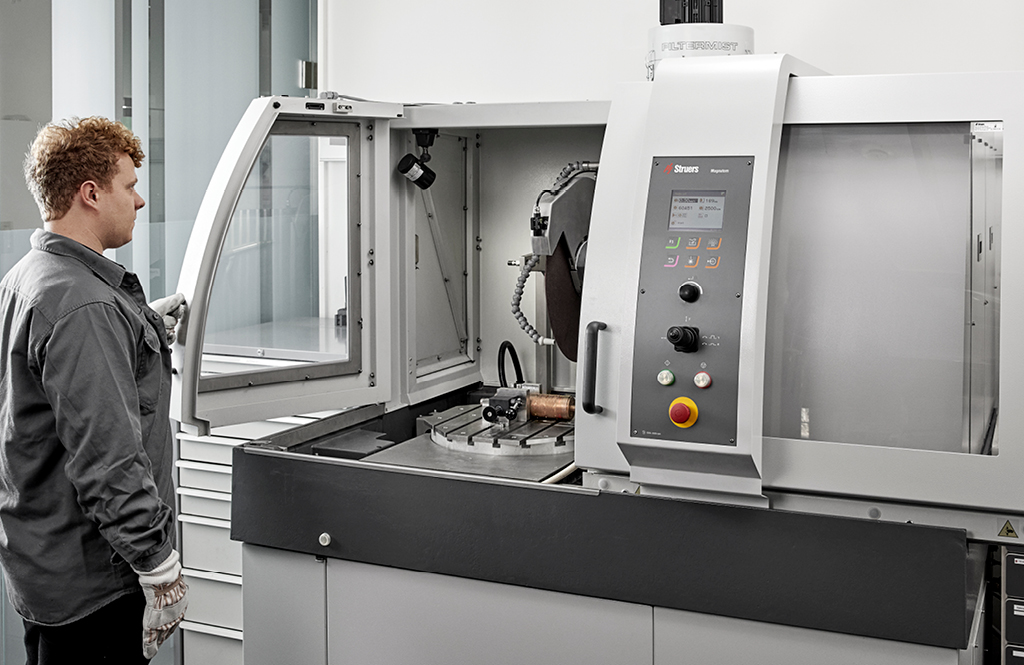

As the only cut-off machine in its field, Magnutom-5000 can map out the most complex of section sequences and simulate all individual sections for you to validate. Magnutom-5000 is the largest machine in its field with four automated axes, as well as a rotary table, which enables a large variety of sectioning possibilities. The spacious 1000 mm wide cutting chamber and sliding front door make it possible to use a forklift or crane to load heavy samples. The motor is so powerful that you can install two cut-off wheels and make parallel sections.
As the only cut-off machine in its field, Magnutom-5000 can map out the most complex of section sequences and then, with the patent pending simulator function, simulate all individual sections for you to correct or validate before sectioning. No time or materials are wasted on trial sections.
All movements are easily operated with the joystick. By integrating the movement of the joystick, the laser light and the software features, Magnutom-5000 presents a unique user interface. During programing, the joystick is moved to the sectioning points and the exact position is logged into the sequence. The operator only needs to decide whether to move or cut.

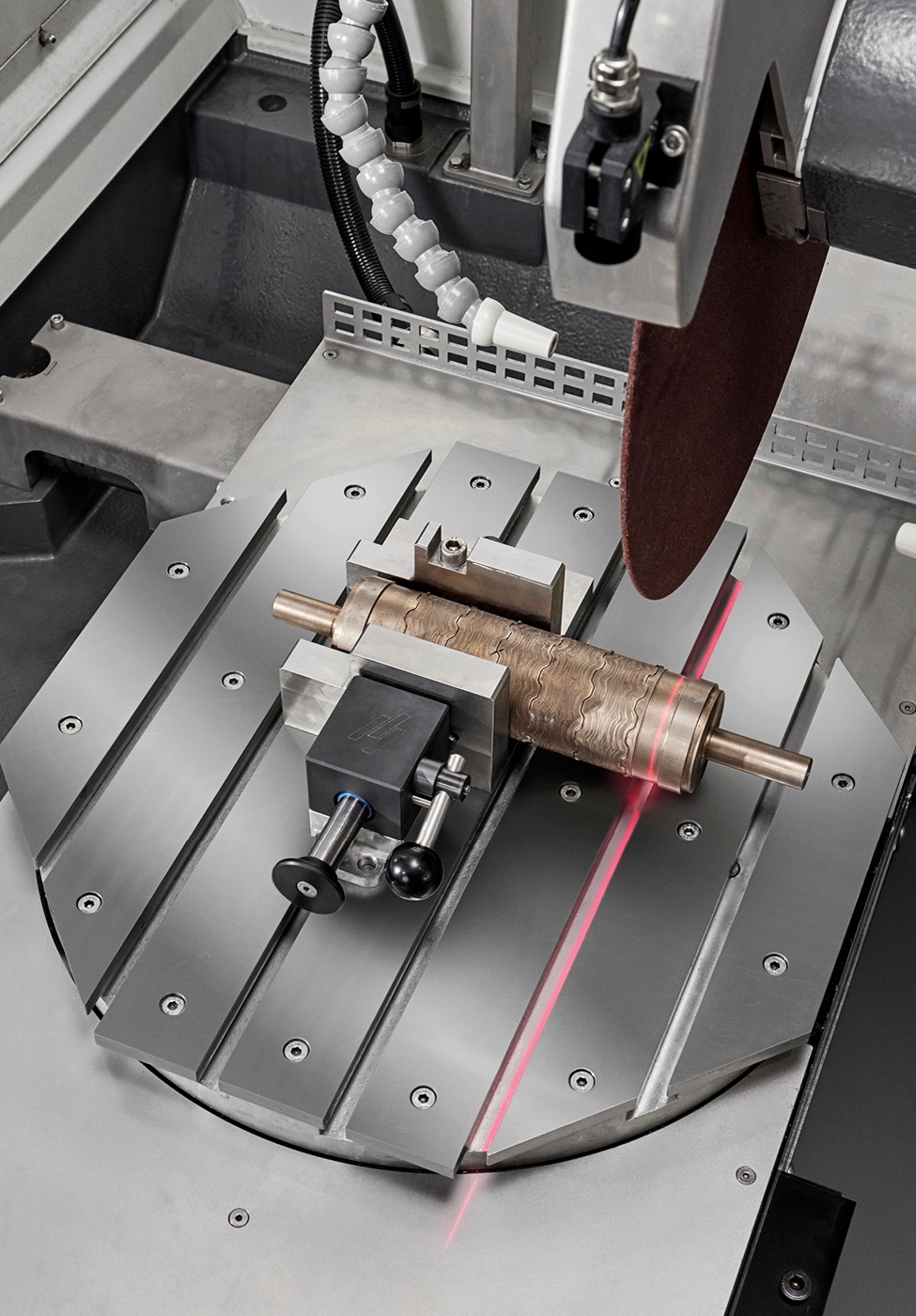

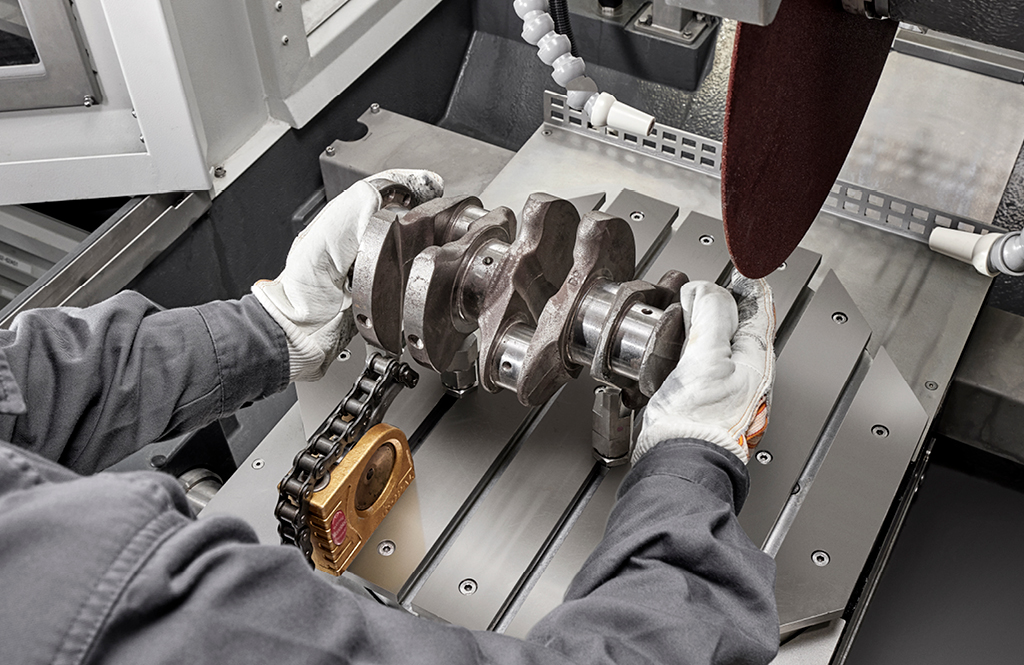

A section is only as accurate as the quality of the clamping. The Magnutom-5000 is the largest machine in its field with four automated axes, including a rotary table. Imagine how much time can be saved with no re-clamping.
Sectioning in up to 4 axes in fully automatic sequences makes it possible to carry out a series of parallel or angled sections of the same or varying thicknesses. Magnutom-5000 has safe move settings, which prevent damage and cut-off wheel breakages during movement.
Magnutom-5000 adapts its speed automatically via rpm-optimization as the cut-off wheel wears down. This means 31% more sections per cut-off wheel can be produced in certain situations by using Struers’ specialized consumables.
Struers’ cut-off wheels have a composition which partially compensates for wear, and on the Magnutom-5000 XYZ and XYZR models, built-in sensors will monitor the wear of the cut-off wheel. The information feeds into algorithms on the machine, and by increasing the speed it insures increased yield of the cut-off wheel.
Magnutom-5000 is available in three versions. See specifications for details.
Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards.
Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
