Motorized Hydraulic Specimen Extruder, Horizontal Type, 60 kN Capacity
|
UTGE-0084 |
Motorized Hydraulic Specimen Extruder, Horizontal Type, 60 kN Capacity |
|
Models for 220-240V 50-60 Hz, 1ph |
UTGE-0084 |
|
Models for 110-120V 60 Hz, 1ph |
UTGE-0084-N |
EN 13286-2, 13286-47, 12697-30; AASHTO T134, T180, T193, T245;
ASTM D698, D1557, D1883, D1559; BS 1377-4, 1924-2, 598-107

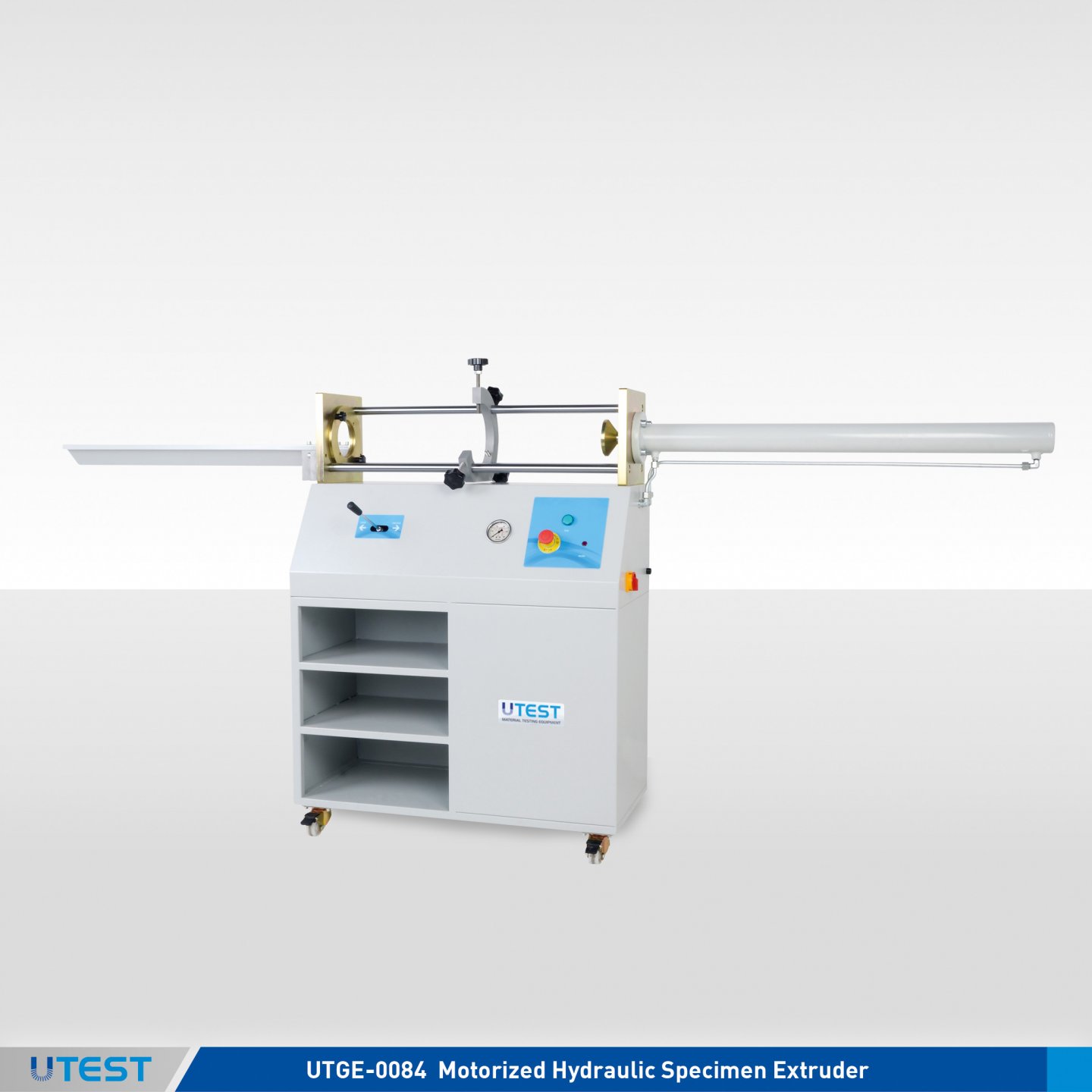

The UTGE-0084 Motorized Hydraulic Extruder, Horizontal Type, is designed for extruding specimens from 50 mm (2”) to 125 mm(5”) (outer dia.) shelby sample tubes and moulds such as proctor, CBR and marshall moulds moulds Also useful for sampling and removing uniaxial and triaxial test specimens to/from the cutters inner dia. from 38mm to 100mm.
The Extruder has 60 kN capacity and 900 mm ram travel. The hydraulic piston can be stopped at any position during the extraction.
To remove the sample from the shelby tubes, adapter sets of different sizes in the table below should be ordered separately.
The Motorized Hydraulic Extruder is supplied complete with ;
|
For UTS-0084 |
||
|---|---|---|
|
UTGE-0110 |
Adaptor Set for 2" (50,8mm) Outer Dia Shelby Tubes. |
Includes a ring with 48,5mm ID. and an extruder head with Ø43,5mm. |
|
UTGE-0112 |
Adaptor Set for 2 ½” (63,5 mm) Outer Dia Shelby Tubes. |
Includes a ring with 61mm ID. and an extruder head with Ø56mm. |
|
UTGE-0114 |
Adaptor Set for 3" (75 mm) Outer Dia Shelby Tubes. |
Includes a ring with 72mm ID. and an extruder head with Ø67mm. |
|
UTGE-0116 |
Adaptor Set for 3 1/4" (83 mm) Outer Dia Shelby Tubes. |
Includes a ring with 79,5mm ID. and an extruder head with Ø74,5mm. |
|
UTGE-0118 |
Adaptor Set for 3 1/2" (88,9 mm) Outer Dia Shelby Tubes. |
Includes a ring with 85mm ID. and an extruder head with Ø80mm. |
|
UTGE-0120 |
Adaptor Set for 100 mm Outer Dia Shelby Tubes. |
Includes a ring with 96mm ID. and an extruder head with Ø91mm. |
|
UTGE-0122 |
Adaptor Set for Ø4" (101,6 mm) Outer Dia Shelby Tubes. |
Includes a ring with 97,5mm ID. and an extruder head with Ø92,5mm. |
|
UTGE-0124 |
Adaptor Set for 4 1/2" (114,3 mm) Outer Dia Shelby Tubes. |
Includes a ring with 109mm ID. and an extruder head with Ø104mm. |
|
UTGE-0125 |
Adaptor Set for 5" (125 mm) Outer Dia Shelby Tubes. |
Includes a ring with 119mm ID. and an extruder head with Ø114mm. |
|
Capacity |
60 kN |
|---|---|
|
Ram Travel |
900 mm |
|
Dimensions |
420x2000x1200 mm |
|
Weigth (approx.) |
195 kg |
|
Power |
750 W |
