Motorized Hydraulic Specimen Extruder Vertical Type

Product Code

UTGE-0086

Motorized Hydraulic Specimen Extruder Vertical Type, 60 kN Capacity



Models for 220-240V 50-60 Hz, 1ph

UTGE-0086

Models for 110-120V 60 Hz, 1ph

UTGE-0086-N



Standards

EN 13286-2, 13286-47, 12697-30; AASHTO T134, T180, T193, T245;

ASTM D698, D1557, D1883, D1559; BS 1377-4, 1924-2, 598-107

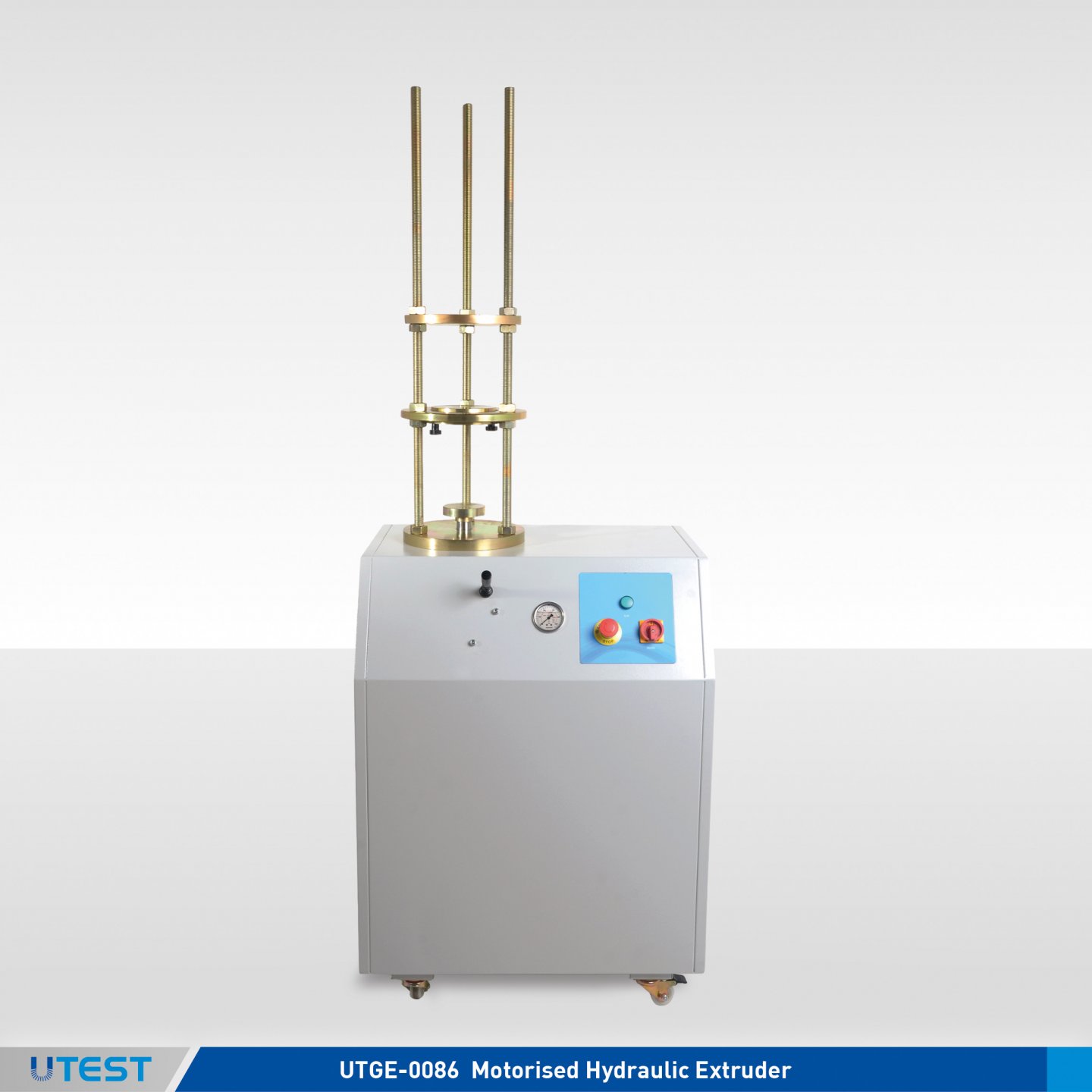

The UTGE-0086 Motorised Hydraulic Extruder, Vertical Type, is designed for extruding specimens from 50 mm (2”) to 125 mm (5”) (outer dia.) shelby sample tubes and moulds such as proctor, CBR and marshall moulds Also useful for sampling and removing uniaxial and triaxial test specimens to/from the cutters inner dia. from 38 mm to 100 mm.


The Extruder has 60 kN capacity and 650 mm ram travel. The hydraulic piston can be stopped at any position during the extraction.


To remove the sample from the shelby tubes, the adapter sets of different sizes on the table in next page of UTGE-0082 should be ordered separately.



The Motorised Hydraulic Extruder is supplied complete with;

  • Adapter sets  for Ø100 mm (4”) and Ø150 mm (6”) inner dia. moulds
  • Flanges and heads sets for Ø38 mm, Ø50 mm, Ø70 mm and 100 mm (only flange) inner dia. cutters.



For UTS-0086

UTGE-0110

Adaptor Set for 2" (50,8mm) Outer Dia Shelby Tubes.

Includes a ring with 48,5mm ID. and an extruder head with Ø43,5mm.

UTGE-0112

Adaptor Set for 2 ½” (63,5 mm) Outer Dia Shelby Tubes.

Includes a ring with 61mm ID. and  an extruder head with Ø56mm.

UTGE-0114

Adaptor Set for 3" (75 mm) Outer Dia Shelby Tubes.

Includes a ring with 72mm ID. and  an extruder head with Ø67mm.

UTGE-0116

Adaptor Set for 3 1/4" (83 mm) Outer Dia Shelby Tubes.

Includes a ring with 79,5mm ID. and an extruder head with Ø74,5mm.

UTGE-0118

Adaptor Set for 3 1/2" (88,9 mm) Outer Dia Shelby Tubes.

Includes a ring with 85mm ID. and an extruder head with Ø80mm.

UTGE-0120

Adaptor Set for 100 mm Outer Dia Shelby Tubes.

Includes a ring with 96mm ID. and an extruder head with Ø91mm.

UTGE-0122

Adaptor Set for Ø4" (101,6 mm) Outer Dia Shelby Tubes.

Includes a ring with 97,5mm ID. and an extruder head with Ø92,5mm.

UTGE-0124

Adaptor Set for 4 1/2" (114,3 mm) Outer Dia Shelby Tubes.

Includes a ring with 109mm ID. and  an extruder head with Ø104mm.

UTGE-0125

Adaptor Set for 5" (125 mm) Outer Dia Shelby Tubes.

Includes a ring with 119mm ID. and  an extruder head with Ø114mm.



Capacity

60 kN

Ram Travel

650 mm

Dimensions

550x730x2010 mm

Weigth (approx.)

190 kg

Power

750 W
