Product detail

RTOFT - Bitumen Oven for Rolling Thin-Film Oven Test
  • Views:
    193
Keyword tag: ,

Bitumen and Bituminous Binders

RTOFT - Bitumen Oven for Rolling Thin-Film Oven Test

Product Code

UTB-0340A

Rolling Thin-Film Oven Test

(RTFOT), ASTM

UTB-0340E-T

Rolling Thin-Film Oven Test (RTFOT), EN 220-240 V 50 Hz, 1ph

UTB-0342

Spare Glass Container

for UTB-0340A and UTB-0340E

UTGE-3700

Laboratory air compressor 8 bar/25 L, 220-240V, 50-60 Hz, 1ph.



Models for 220-240 V 50 Hz, 1ph.

UTB-0340A-T

Models for 110-120V 60 Hz, 1 ph.

UTB-0340A-N

Models for 220-240V 60 Hz, 1 ph.

UTB-0340A-N



Standards

EN 12607-1; ASTM D2872



Rolling Thin-Film Ovens are used for determination of the resistance to hardening of semisolid asphaltic materials/ bitumen or bituminous binders under the combined effects of heat and air with the rolling thin-film oven test (RTFOT) method.

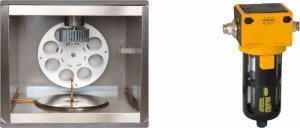

The Internal chamber of UTB-0340A and UTB-0340E are manufactured from stainless steel, insulated with fiberglass or similar, the door has a symmetrically located window.

The ovens have a programmable temperature controller which works in PID mode and digital display system. Grade A platinium resistance thermometer is used for measuring and controiling the temperature of the oven. The temperature can be read from the digital unit placed on the oven. Over tempereture controlled by a mechanical switch. Conforming to the CE Directives.

Air Compressor should be ordered separately. Maximum pressure should not exceed 2 bar when an air compressor is used with.

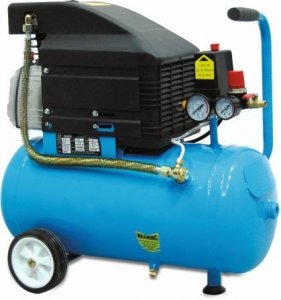

UTGE-3700 Laboratory air compressor,supplied complete with hose and gun should be ordered seperately.



 0340A                       compress

                                                                                UTGE-3572                                        UTGE-3700



The Rolling Thin-Film Ovens are supplied complete with;

  • Glass Comtainers, 8 pcs.
  • Air-Drying Unit ( UTGE-3572 )
  • Transparent Hose, 8/5,5mm(OD/ID), 3m.



Dimensions

800x840x720 mm

Weight (approx.)

105 kg
