Universal Cutting Machine
|
UTC-1020 |
Universal Cutting Machine Junior |
|
UTC-1022 |
Cutting Blade Ø450 mm |
|
Models for 220-240V 50-60 Hz, 1 ph. |
UTC-1020 |
EN 12390–3, 12504-1; ASTM C42, D4543

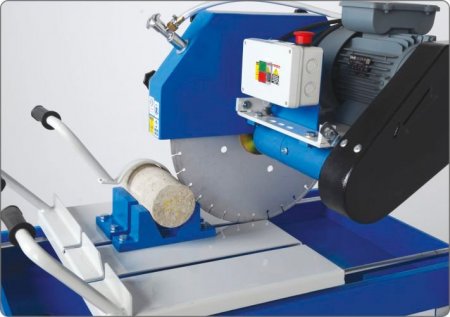

The UTC Series Universal Cutting Machine has been developed to cut and prepare concrete, rock or natural stone, cores or other type test specimens.
Special clamp assembly allows specimens to be held during cutting operation. The machine is supplied complete with “V“ block clamp for Ø100 mm specimens and a water circulation pump.
Cutting Blade should be ordered separately.
|
UTC-1020 Junior |
|
|---|---|
|
Length |
1100 mm |
|
Width |
700 mm |
|
Height |
1400 mm |
|
Blade Diameter |
450 mm |
|
Max. Cutting Height |
175 mm |
|
Cutting Length |
420 mm |
|
Weight |
140 kg |
|
Water Pump Power |
0.37 hp |
